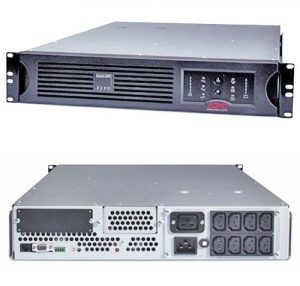

APC Smart-UPS 3000VA USB & Serial RM 2U 230V

Details

Output Power Capacity  2700 Watts / 3000 VA
Max Configurable Power (Watts) 2700 Watts / 3000 VA
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 5% at full load
Output Frequency (sync to mains) 47 – 53 Hz for 50 Hz nominal , 57 – 63 Hz for 60 Hz nominal
Output Connections (1) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup)
Nominal Input Voltage 230V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations 160 – 286 V
Input voltage adjustable range for mains operation 151 – 302V
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3 hour(s)
Replacement Battery RBC43
RBC Quantity 1
Interface Port(s) DB-9 RS-232 , SmartSlot , USB
Available SmartSlot™ Interface Quantity 1
Control panel LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Yes
Maximum Height 89.0 mm
Maximum Width 483.0 mm
Maximum Depth 660.0 mm
Rack Height 2 U
Net Weight 43.64 kg
Shipping Weight 54.0 kg
Shipping Height 250.0 mm
Shipping Width 600.0 mm
Shipping Depth 980.0 mm
